Description

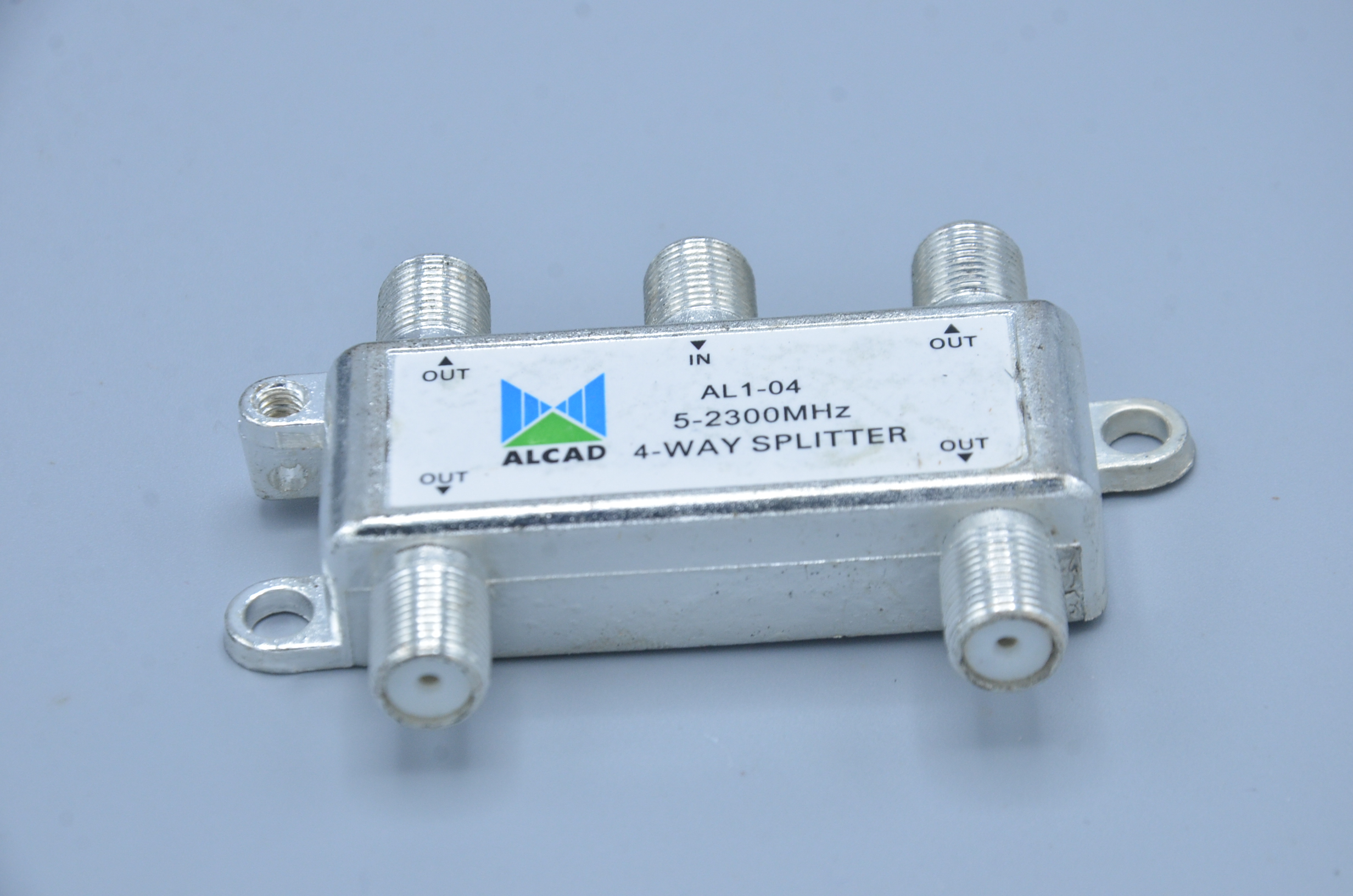

The Alcad 4-way splitter is used for splitting a single coaxial cable signal to multiple outputs.
KEY FEATURES AND INFORMATION
Number of Inputs: 1
Number of Outputs: 4
Frequency Range: 5 MHz to 2300 MHz
Output Type: F-type connectors
Chassis Material: Shielded zamak with a metal plate
Signal Path: Flat response with equal power distribution
Power: DC path for power pass (model dependent)
Broad Frequency Range: Supports terrestrial and satellite TV signals, typically covering frequencies from 5 MHz to 2300 MHz.
Equal Signal Distribution: The input signal is divided equally among the four outputs.
Power Pass (DC Path): Many models feature a DC path to allow power to pass through to a mast-head amplifier, enabling remote power supply for boosters.
Protection Diodes: All output connectors have protection diodes to safeguard against voltage surges and electrostatic discharge.
Bidirectional Design: They are designed to work with modern bidirectional TV systems, ensuring signals can pass both ways.
