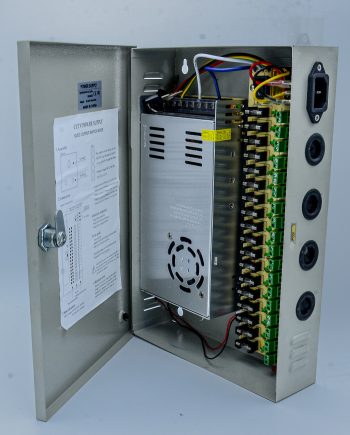

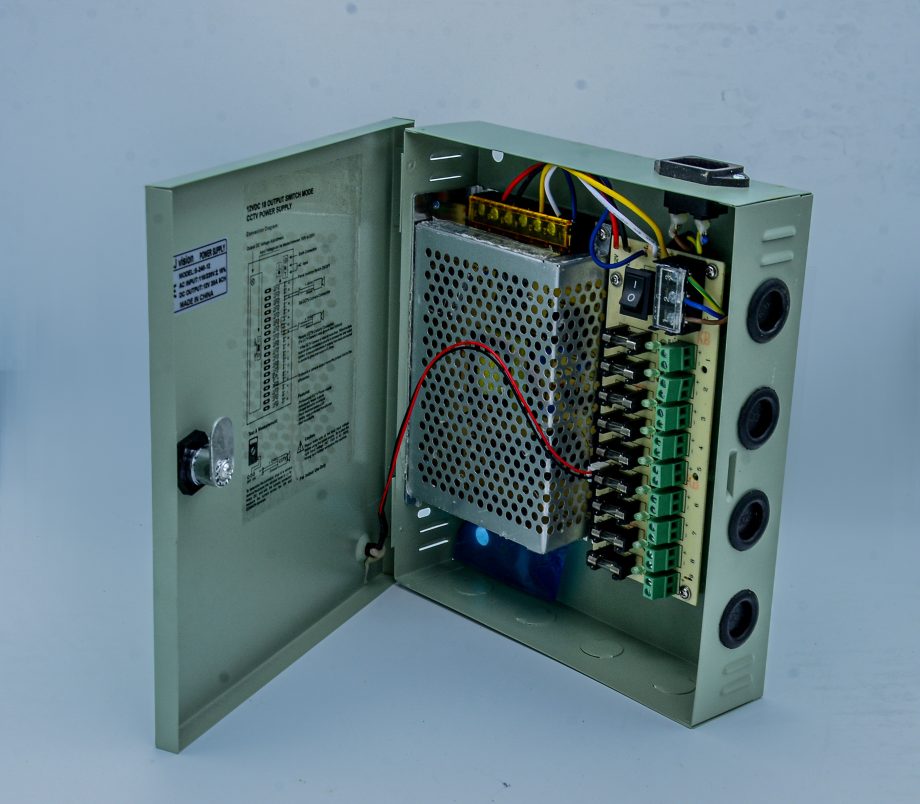

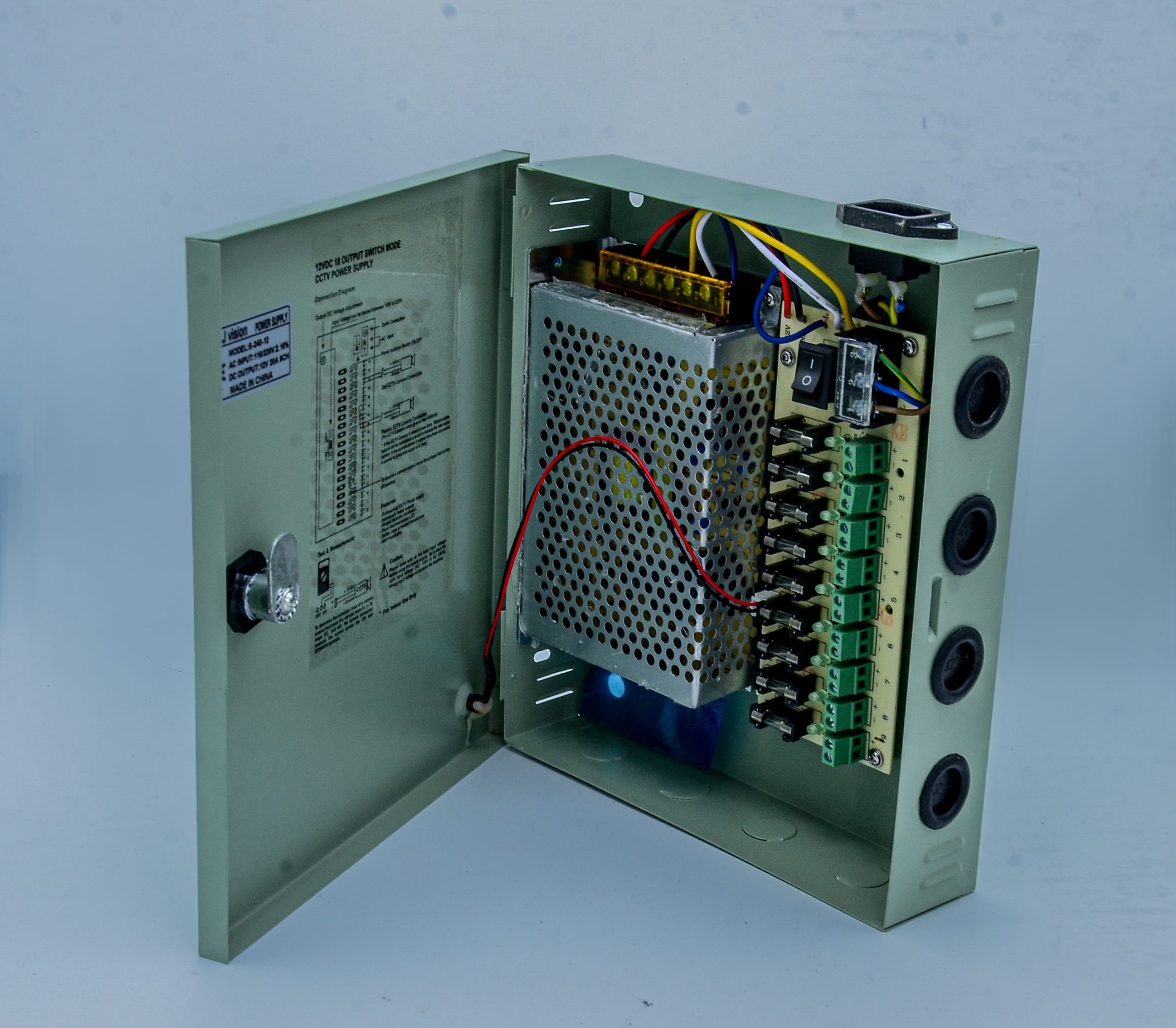

9-way CCTV Central Power Supply Unit

Description

The 9-way CCTV Central Power Supply Unit provides 12V DC power to multiple CCTV cameras, featuring 240W of total power, an input voltage of 110/220V AC and 20A output current. It includes a professional, lockable wall-mountable box, individual PTC reset-able fuses for each output channel to protect against shorts, and self-recovery protection for over-load, over-voltage, and over-heat conditions. The unit also includes AC/DC LED indicators for monitoring power status and is designed for reliable, stable power delivery to security cameras and DVRs.

KEY FEATURES AND INFORMATION

Model: S-240-12

Input Voltage: 110/220V AC (with ±15% tolerance)

Output Voltage: 12V DC

Output Power: 240W

Output Current: 20A

Channels: 9-way (for multiple camera connections).

Fuses: Individual Auto-Reset PTC fuses for each output.

Protection: Over-load, over-voltage, over-heat, and short-circuit protection with self-recovery.

Indicators: AC and DC LED indicators for power status monitoring.

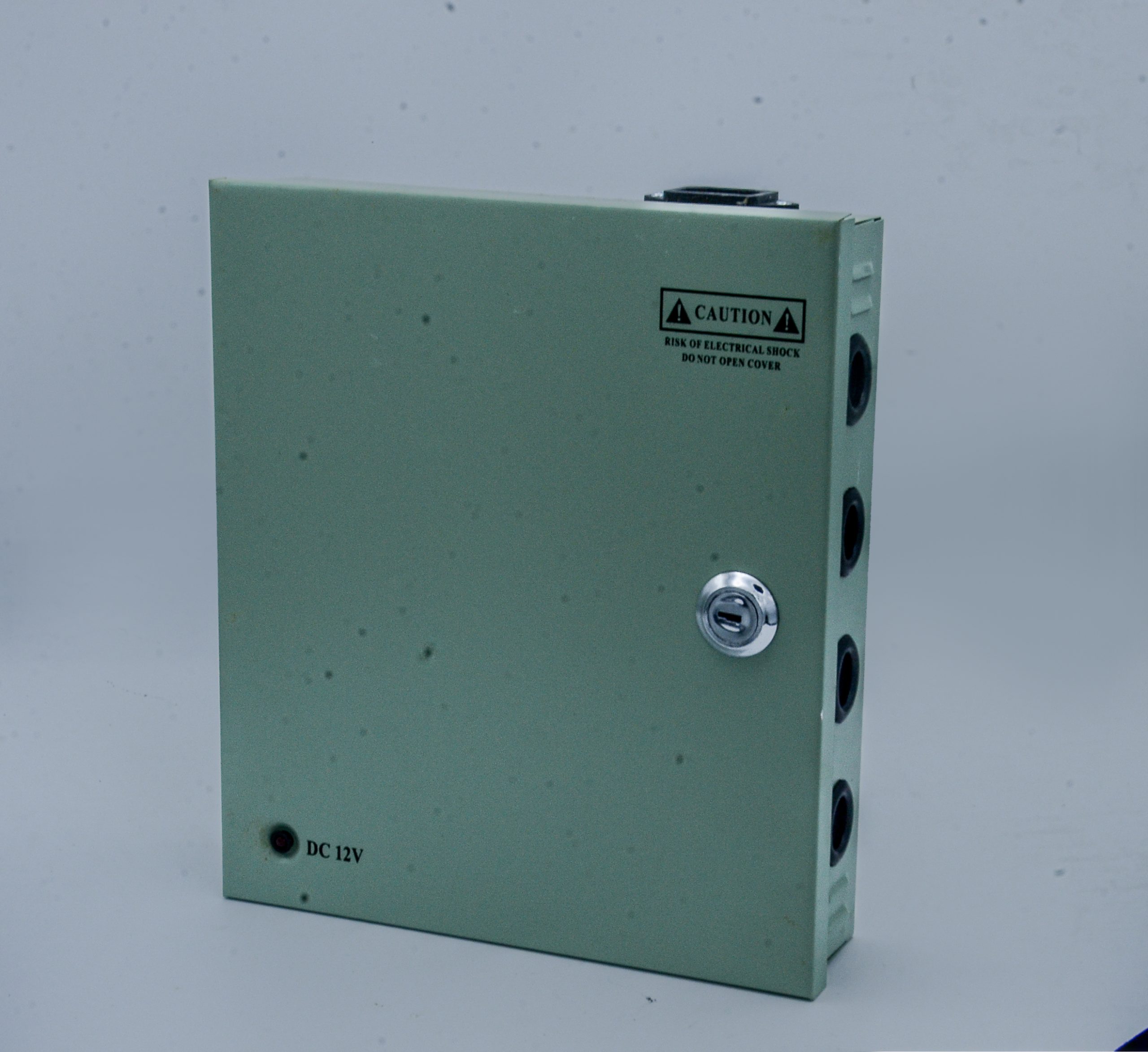

Housing: Wall-mountable, lockable metal box for a secure and professional installation.

Ease of Use: Easy access terminals and rear cable entry for convenient wiring.

Application: Suitable for powering security cameras, DVRs and other CCTV system component
