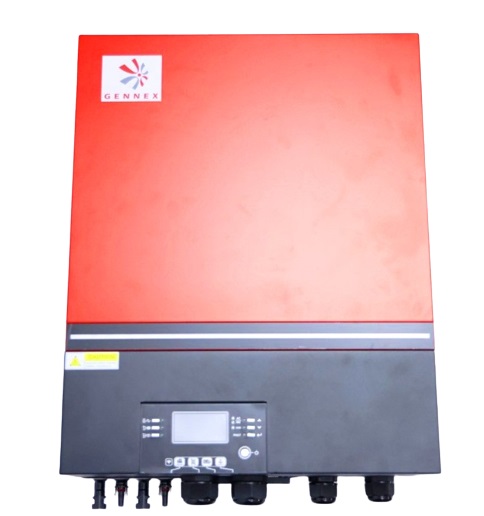

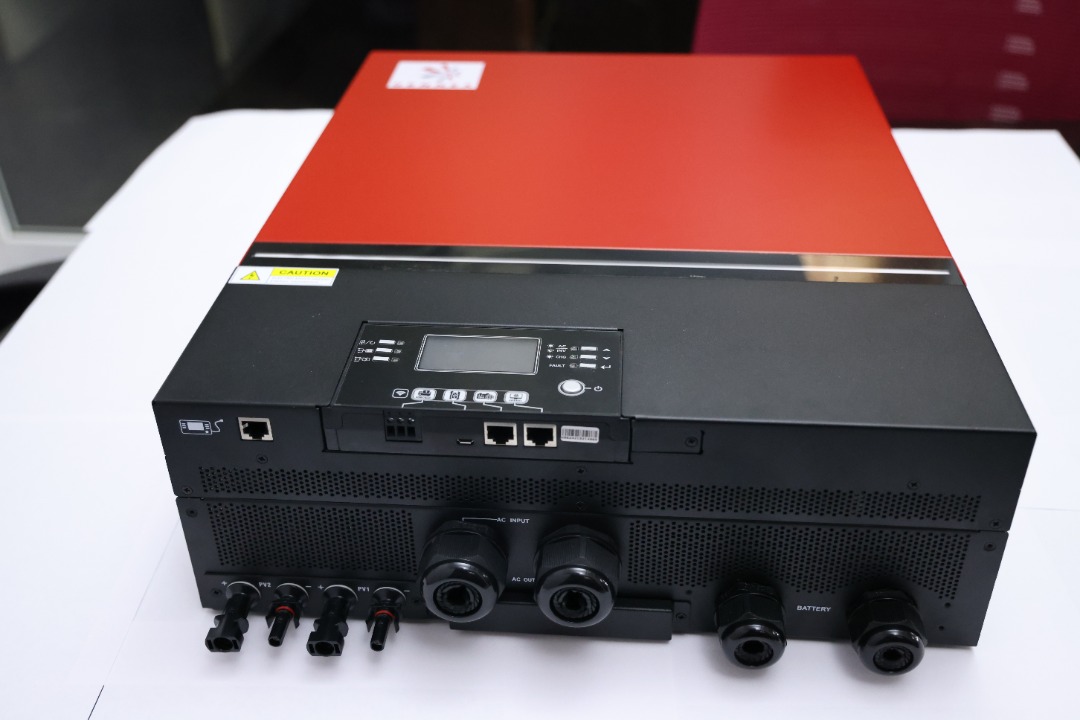

Gennex 8KVA/48V Battery Independent Inverter

Description

The Gennex 8KVA/48V Battery Independent Inverter is a third-generation hybrid solar inverter known for its advanced features and reliability, including double MPPT charge controllers which can comfortably power your load without battery.

KEY FEATURES AND INFORMATION

• Status indication with RGB lights.
• Built-in Wi-Fi for mobile monitoring (Android/iOS App is available).
• Supports USB On-the-Go function.
• Reserved communication port for BMS (RS485, CAN-BUS or RS232).
• Battery independent design.
• Parallel operation with 6 units.
• Configurable AC/PV output usage timer and prioritization.
• Selectable high power charging current.
• Selectable input voltage range for home appliances and personal computers.
• Compatible to Utility Mains or generator input.
• Built-in anti-dust kit.
• Optional DC output for DC fan, LED bulb, router and so on.
• Dual outputs selected as either programmable output or generator input.

MODEL: Axpert MAX-80000

CAPACITY: 8000VA/8000W

PARALLEL CAPABILITY: up to 6 units

INPUT Voltage: 230 VAC

• Selectable Voltage Range: 170-280 VAC (For Computers) 90-280 VAC (For Home Appliances)
• Frequency Range: 50 Hz/60 Hz (Auto sensing)

OUTPUT

• AC Voltage Regulation (Batt. Mode): 230VAC ± 5%
• Surge Power: 16000VA
• Efficiency (Peak): 90% ~ 93%
• Transfer Time: 15 ms (For Personal Computers), 20 ms (For Home Appliances)
• Waveform: Pure sine wave
• No Load Power Consumption: <70W
• Optional DC Voltage: 12 VDC ± 5%, 100W
• Dual Outputs: YES

BATTERY

• Battery Voltage: 48 VDC
• Floating Charge Voltage: 54 VDC
• Overcharge Protection: 66 VDC

SOLAR CHARGER & AC CHARGER

• Solar Charger type: MPPT
• Maximum PV Array Power: 8000W (4000W x 2)
• MPPT Range @ Operating Voltage: 90 ~ 450 VDC
• Maximum PV Array Open Circuit Voltage: 500 VDC
• Maximum Solar Charge Current: 120A
• Maximum AC Charge Current: 120A
• Maximum Charge Current: 120A
