Description
The Hikvision 8-Channel CCTV Power Supply Unit provides 12V DC power to eight cameras, each drawing up to 1A, for a total output of 8A.
KEY FEATURES AND INFORMATION

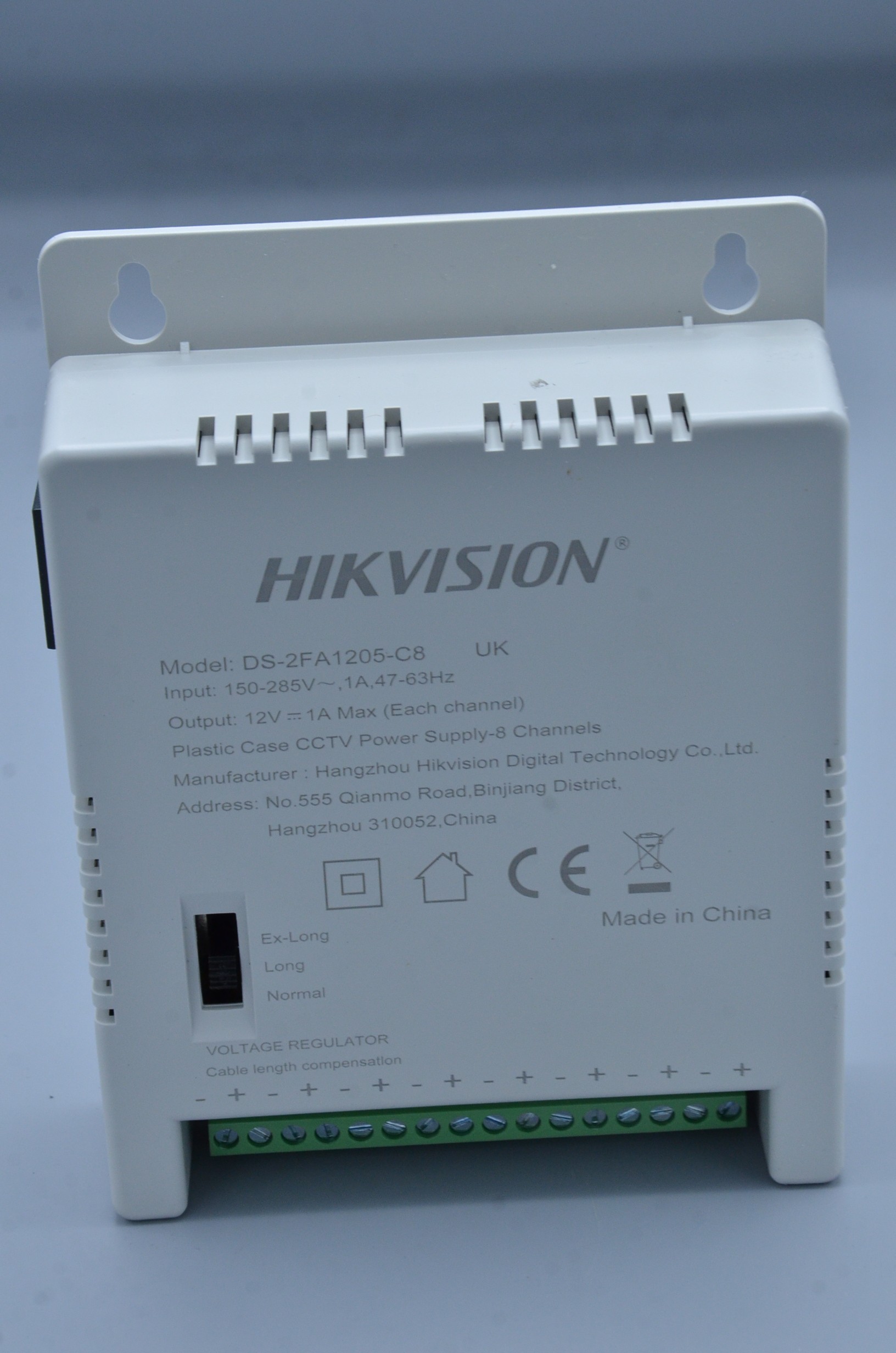

Model: DS-2FA1205-C8
Power Output: Offers 12V DC output for each of the 8 channels, with each channel supplying up to 1A of current.
Total Output: The total maximum output is 8A.
Protection: Features built-in protection mechanism against short-circuit, overcurrent, and overvoltage conditions.
Cable Length Compensation: Includes options for Normal (12V), Long (13.5V), and Ex-Long (15V) settings to provide adequate voltage over long cable runs.
Input Voltage: Operates with a wide input voltage range, such as 150 to 285 VAC, 47 Hz to 63 Hz.
Design: A compact and durable design, makes it suitable for various installation environments.
LED Indicators: Equipped with LED indicators for each channel to show the power status and simplify troubleshooting.
Connectors: Features standard connectors, such as a C8 plug for AC input and grid terminals for DC output.
