Description

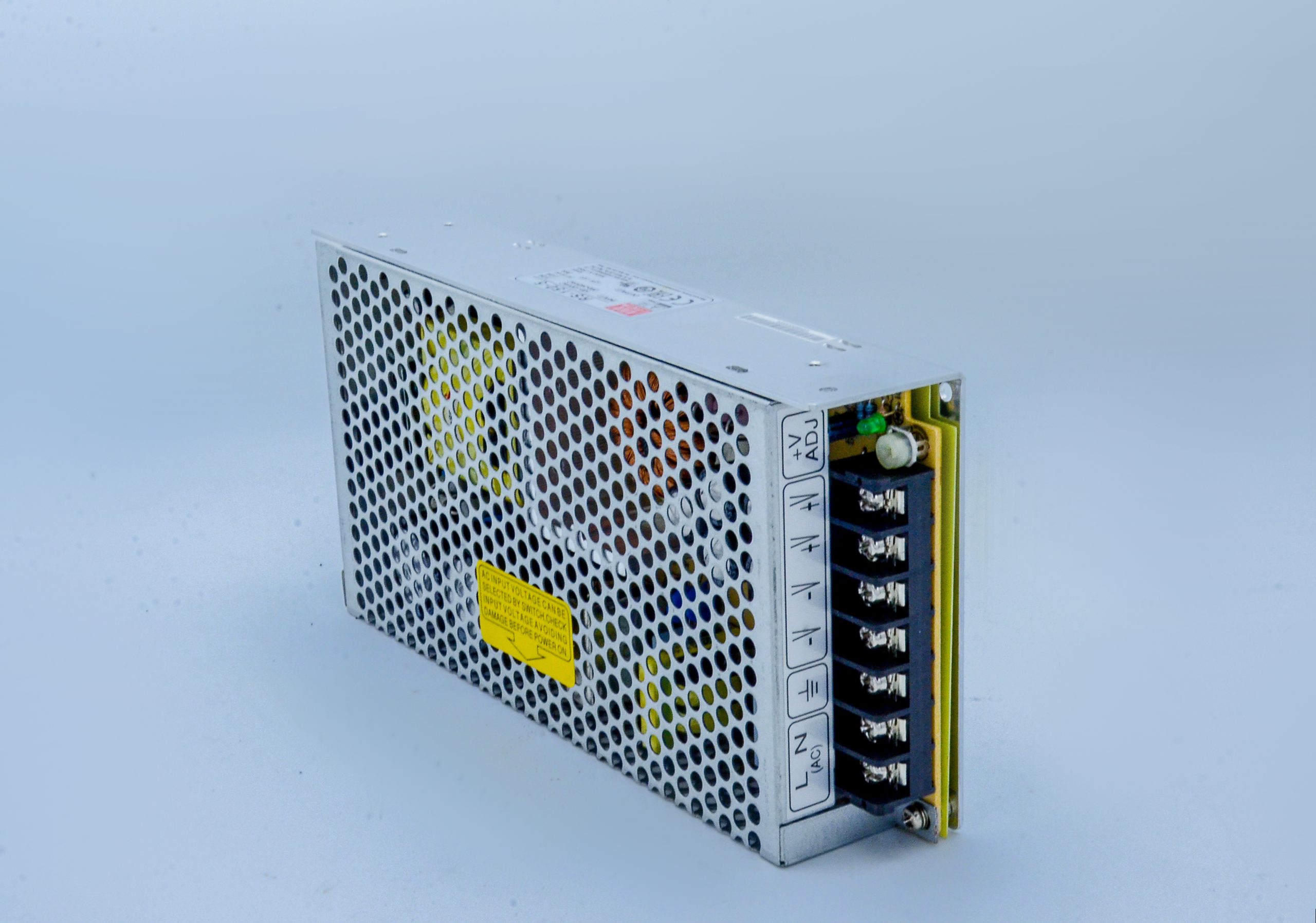

The Meanwell 5V/26A Switching Power Supply Unit is a 130W single-output AC-DC power supply with a 5V DC output at 26A, featuring wide-range input, high efficiency, over-voltage, over-load and short-circuit protection.
Key FEATURES AND INFORMATION
Model: RS-150-5
Output Voltage: 5V DC
Output Current: 26A
Power: 130W (Maximum)
Input Voltage: 100-120VAC and 200-240VAC
Efficiency: 78% typical
Protections: Short Circuit, Overload, Over Voltage
High Reliability: Uses 105°C long-life electrolytic capacitors and undergoes 100% full load burn-in testing.
Industrial Design: Meets EMS EN50082-2/EN61000-6-2 heavy industry standards and withstands 5G vibration tests.
Wide Input Range: Accommodates 100-120VAC and 200-240VAC inputs, providing flexibility for various power sources.
Environmental Resistance: Operates from -25°C to +70°C.
Compact & Enclosed: Features a small footprint and enclosed package type for easy integration and silent operation.
